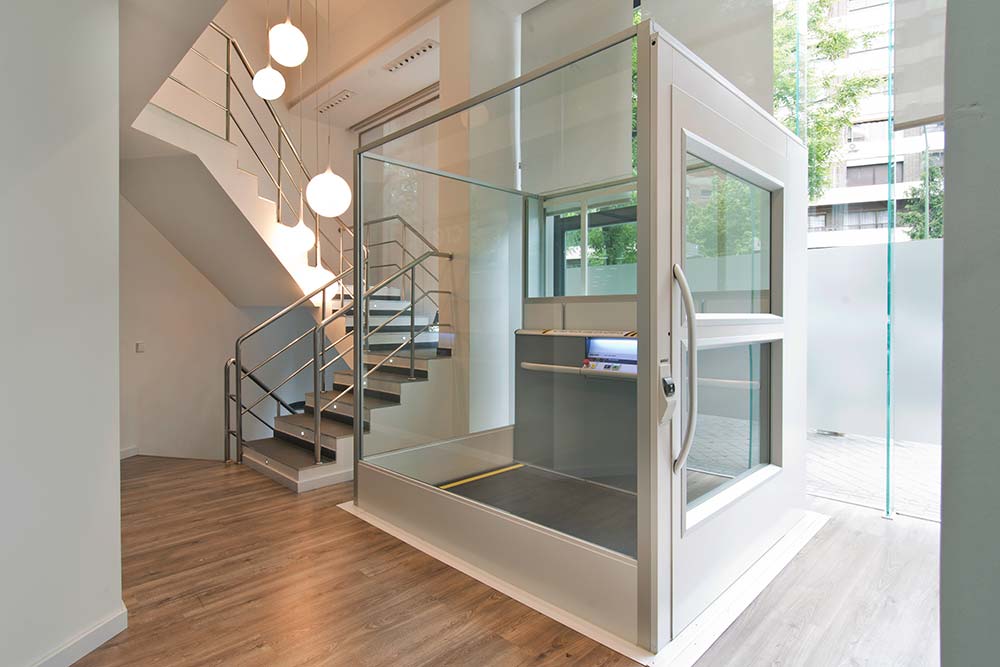

CIBES A8000

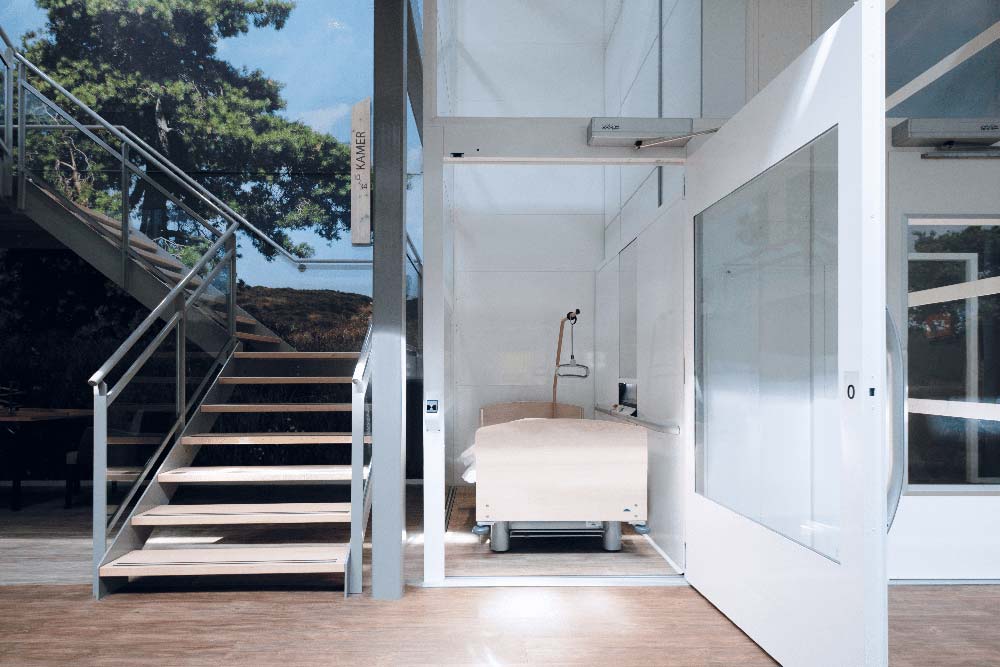

The generous platform sizes and high load capacity make goods lift Cibes A8000 our most powerful and versatile lift. The Cibes A8000 is a lift certified for safe transport of both goods and passengers, also known as a goods lift with attendant. This means that staff members are allowed to accompany the cargo while the lift is travelling.
Main features:
- Rated load: 1000 kg
- Power supply: 3 x 230 VAC/3 x 400 VAC, 50 Hz, 16 A, 5 x 2,5 mm²
- Speed: max 0.15 m/s
- Min headroom: 2350 mm (full-height door)
- Lift pit: 130 mm or 0 mm with access ramp
- Max travel: 13 m
- Max number of stops: 6
Note: The floor cut out may vary depending on lift configuration. For exact measurements, please ask Cibes for project specific drawings.
| Installation | Indoor |
| Rated load | 1000 kg |
| Power supply | 3x400/3 x 230 V a.c., 50 Hz, 16 A, 5x2,5 mm2 |
| Speed | Max. 0.15 m/s |
| Top height | 2300 mm |
| Min. headroom | 2350 mm |
| Pit depth | 0/50/70 mm |
| Directives&standards | MD 2006/42/EC, EN 81-41, SIL3 |
| Drive system | Screw and nut |
| Lift controls | Hold-to-run on platform, one touch on landings |
| Control system | Micro computer based SIL3 |
| Power motor | 4 kW |
| Machine room | Machine room less (MRL) |
| Max. number of stops | 6 |
| Max. travel | 13 m |
| Door configuration | Single hinged doors (L/R), single entry, open-through or adjacent access |
| Safety | Safety edges for the top of the platform and floor, overload protection, emergency stop and alarm button, telephone and battery emergency lowering are included as standard, various lock solutions and fire drive are available as options. |
| Lift shaft | Tempered and laminated safety glass (4.0 mm + 0.76 mm PVB foil + 4.0 mm) or steel panels. |
| Platform size | Platform (mm) | Shaft size (mm) | Cut out size | |||
|---|---|---|---|---|---|---|
| Width | Depth | Width | Depth | Width | Depth | |
| 1 | 1405 | 1980 | 1825 | 2056 | 1895 | 2135 |
| 2 | 1405 | 2480 | 1825 | 2556 | 1895 | 2635 |
| 3 | 1105 | 2180 | 1525 | 2256 | 2256 | 2335 |
