CIBES A5000 ELEVATORS

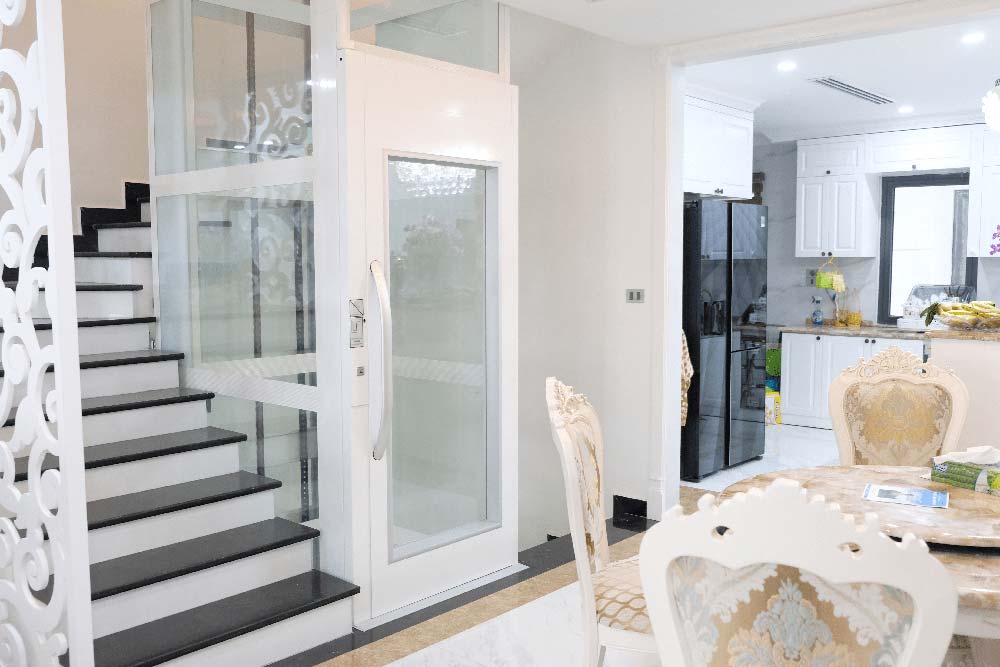

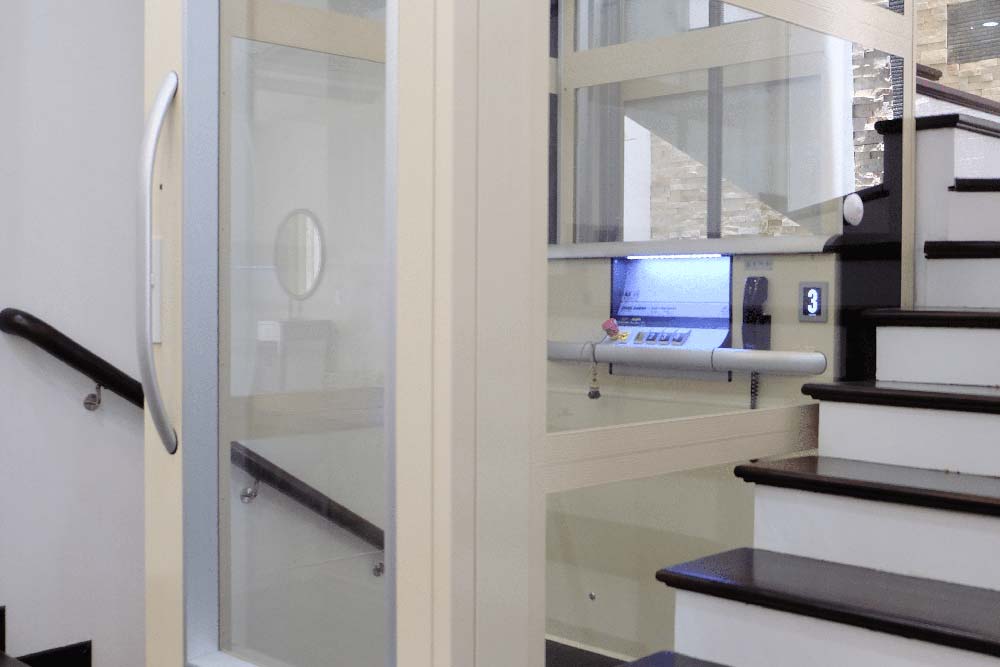

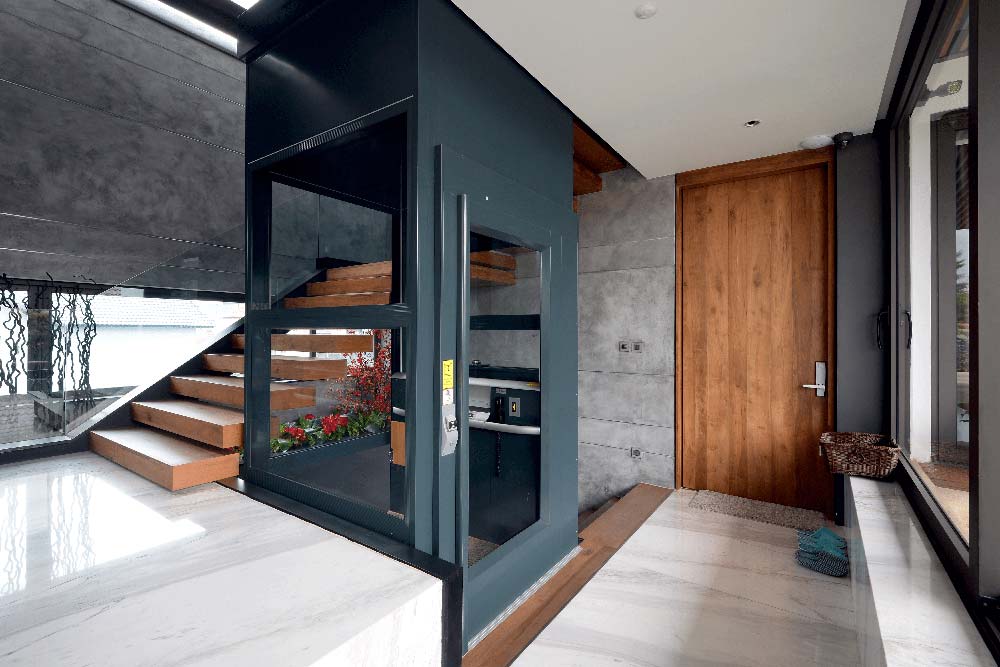

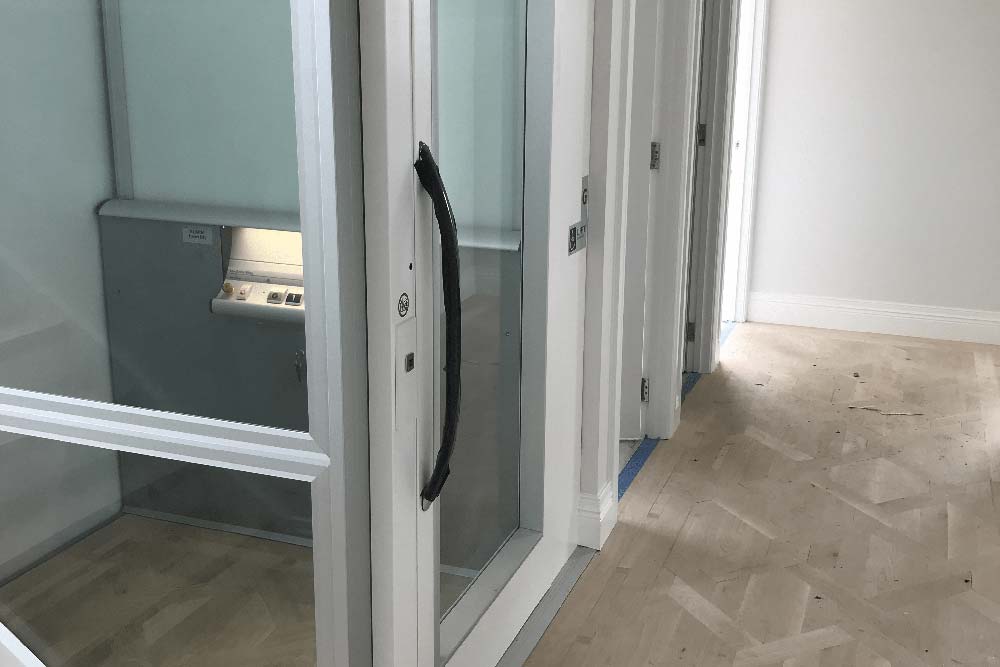

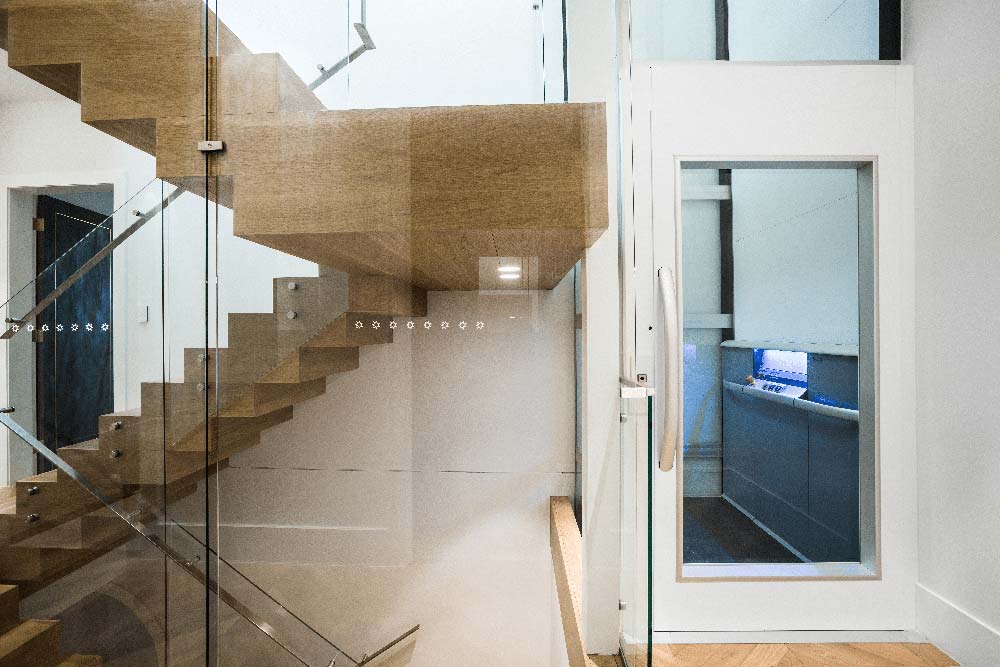

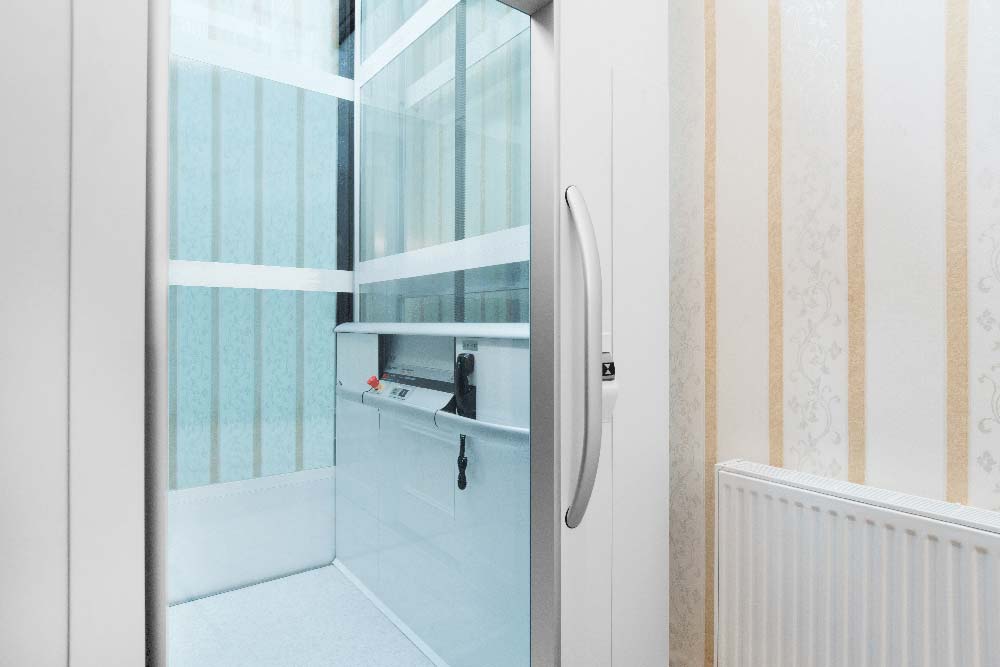

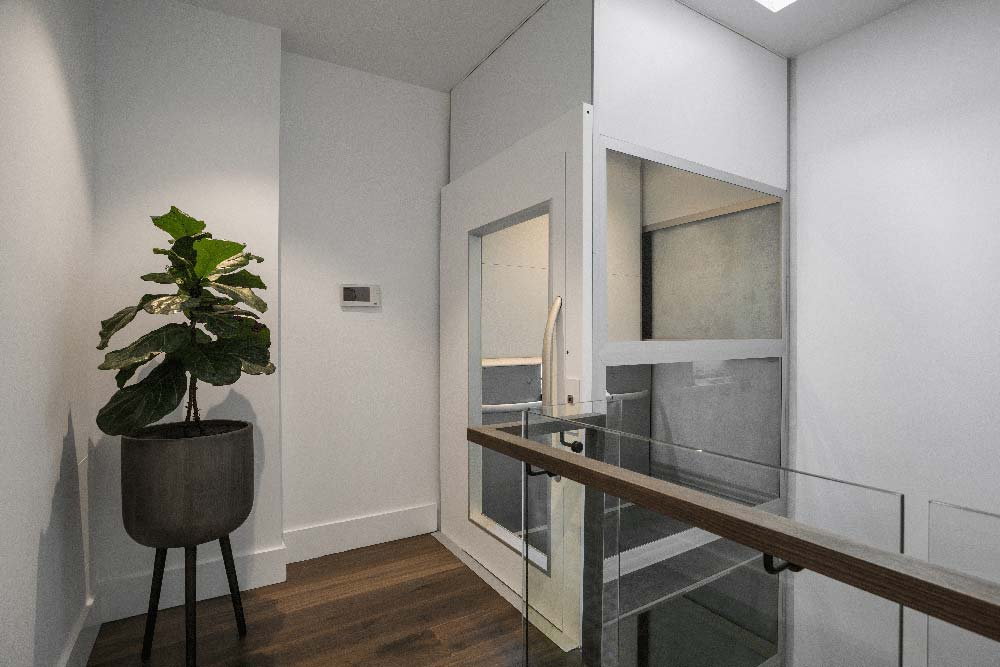

Residential Lift Cibes A5000 is a great way to add comfort, beauty and real estate value to your home. Residential Lift Cibes A5000 is small on the outside and incredibly spacious on the inside. The lift is delivered in ready-made modules with everything you need for installation, including the lift shaft.
Main features:
- Rated load: 400/500 kg
- Power supply: 1 x 230 VAC/3 x 230 VAC/3 x 400 VAC, 50 Hz, 16 A, 3 x 2,5 mm²
- Speed: max 0.15 m/s
- Min headroom: 2250 mm (full-height door)
- Lift pit: 50 mm or 0 mm with access ramp
- Max travel: 20 m
- Max number of stops: 6
Note: Shaft and cut out sizes may vary depending on lift configuration. For exact measurements, please ask Cibes for project specific drawings.
| Installation | Indoor/outdoor1 |
| Rated load | 400/500 kg |
| Power supply | 1x230 V a.c./ 3x 230 V a.c. / 3x400 V a.c., 50 Hz, 16 A, 3x2,5 mm2 |
| Speed | Max. 0.15 m/s |
| Top height | 2250/1300 mm |
| Min. headroom | 2300 mm (door) |
| Pit depth | 0/50/70 mm |
| Directives&standards | MD 2006/42/EC, EN 81-41, SIL3 |
| Drive system | Screw and nut |
| Lift controls | Hold-to-run on platform, one touch on landings |
| Control system | Micro computer based SIL3 |
| Power motor | 2,2 kW |
| Machine room | Machine room less (MRL) |
| Max. number of stops | 6 |
| Max. travel | 13 m |
| Door configuration | Single hinged doors (L/R), single entry, open-through or adjacent access |
| Safety | Safety edges for the top of the platform and floor, overload protection, emergency stop and alarm button, telephone and battery emergency lowering are included as standard, various lock solutions and fire drive are available as options. |
| Lift shaft | Tempered and laminated safety glass (4.0 mm + 0.76 mm PVB foil + 4.0 mm) or steel panels. |
1 Outdoor concept available for platform sizes 1000 x 1467 and 1100 x 1467 mm.
