CIBES A4000 ELEVATORS

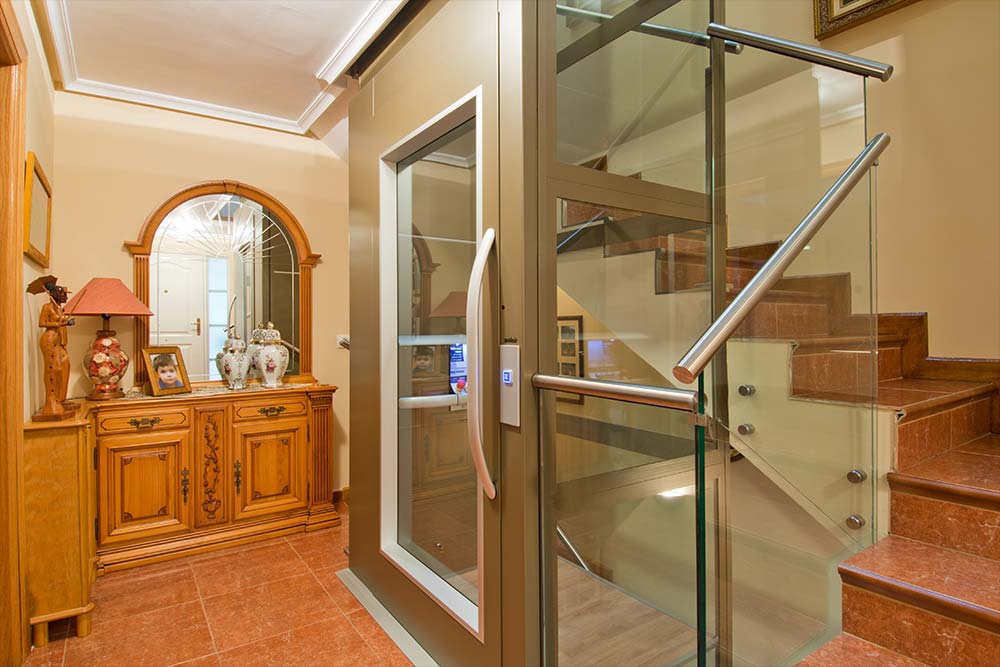

The Cibes A4000 is delivered in ready-made elements that can be installed within just a few days, with minimal building alterations. In addition, the super compact design of this lift model enables it to fit into very small and narrow spaces, like the unused space at the centre of your staircase.
If you choose the Cibes A4000, you will get a comfortable, reliable, and beautifully designed lift solution which you and your family will enjoy for many years.
Main features:
- Rated load: 300 kg/3 people
- Power supply: 1 x 230 VAC/3 x 230 VAC/3 x 400 VAC, 50 Hz, 16 A, 3 x 2,5 mm²
- Speed: max 0.15 m/s
- Min headroom top floor: 2250 mm (full-height door)
- Lift pit: 50 mm or 0 mm with access ramp
- Max travel: 20 m
- Max number of stops: 6
Note: Shaft and cut out sizes may vary depending on lift configuration. For exact measurements, please ask Cibes for project specific drawings.
| Installation | Indoor |
| Rated load | 300 kg |
| Power supply | 1x230 V a.c./ 3x 230 V a.c. / 3x400 V a.c., 50 Hz, 16 A, 3x2,5 mm2 |
| Speed | Max. 0.15 m/s |
| Top height | 2250/1300 mm |
| Min. headroom | 2300 mm (door) |
| Pit depth | 0/50/70 mm |
| Directives&standards | MD 2006/42/EC, EN 81-41, SIL3 |
| Drive system | Screw and nut |

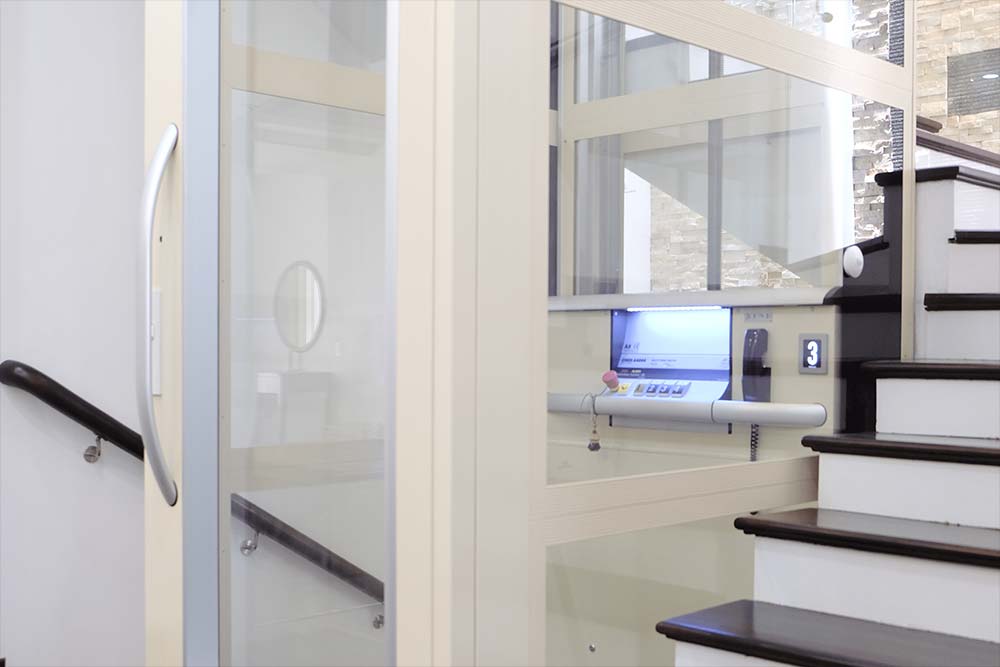

| Lift controls | Hold-to-run on platform, one touch on landings |
| Control system | Micro computer based SIL3 |
| Power motor | 2,2 kW |
| Machine room | Machine room less (MRL) |
| Max. number of stops | 6 |
| Max. travel | 13 m |

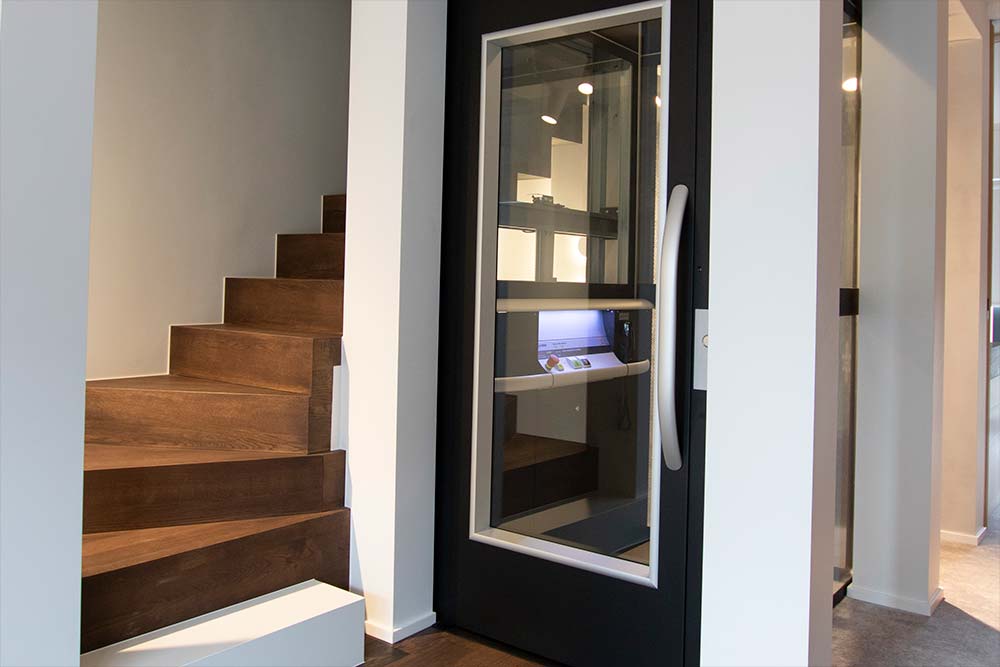

| Door configuration | Single hinged doors (L/R), single entry, open-through or adjacent access |
| Safety | Safety edges for the top of the platform and floor, overload protection, emergency stop and alarm button, telephone and battery emergency lowering are included as standard, various lock solutions and fire drive are available as options. |
| Lift shaft | Tempered and laminated safety glass (4.0 mm + 0.76 mm PVB foil + 4.0 mm) or steel panels. |
